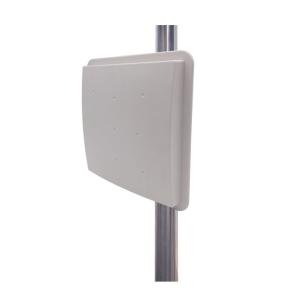

4xN-K 2500-2600M MIMO 10dbi H+V Dual Polarized Directional Flat Antenna

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 4xNK 25002600M MIMO 10dbi HV Dual Polarized Directional Flat Antenna
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10738-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2500-2600MHz

VSWR : <2.0

Peak Gain : 10dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
	Port 1	Port 2	Port 3	Port 4
Frequency	2500-2600MHz
S.W.R.	<= 2.0
Antenna Gain	10dBi
Polarization	H	V	H	V
Horizontal Beamwidth	70°
Vertical Beamwidth	35°
F/B	>20dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	4*N Female connector
Dimension	25625640mm
Radome material	ABS
Weight	1.0Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

4xN-K 2500-2600M MIMO 10dbi H+V Dual Polarized Directional Flat Antenna

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern

Product Tags:

10dbi Directional Flat Antenna
