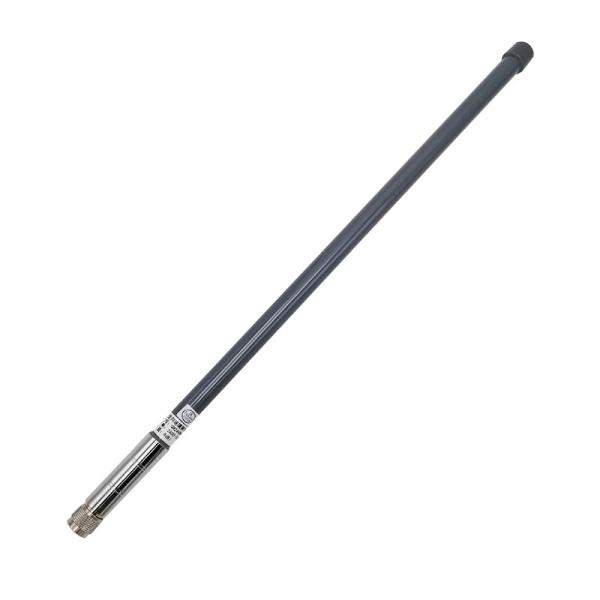

Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Fiber Glass FRP WIFI High Gain Omni Antenna 24G 8dBi 185x570mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10403-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 2400-2500MHz

VSWR : <1

Peak Gain : 8dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
Impedance	50 Ohm
S.W.R.	<1.5
Antenna Gain	8dBi
Efficiency	≈83%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	15°±2°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ18.5*570mm
Weight	0.275Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm

2.2 Total Efficiency & Gain:

2.3 Radiation Pattern

Product Tags:

2.4G Omni Antenna
